Vizio Reference Series – RS120-B3 and RS65-B2

Vizio’s New 4K Reference Series – The TVs that have no Equal

Update: Pricing Now Available!

Product Preview

The wait is almost over…after much anticipation and many delays, Vizio’s Reference Series is set to appear on the market. Release dates still unknown, but coming very soon.

Update: Both models available now.

Vizio claims their new Reference Series’ sets a new benchmark of sensory excellence, while portraying a “picture of perfection”.

I certainly hope these claims can and will be realized with these long awaited high-end displays.

The following is the latest information I’ve compiled regarding these TVs:

The Reference Series will be available in two models:

RS120-B3 120″ Class Ultra HD Full-Array LED Smart TV

Price:$129,999.99

RS120-B#

RS120-B3

RS65-B2 65″ Class Ultra HD Full-Array LED Smart TV

Price:$5,999.99

rs65-B2

RS65-B2

Important note: Both models are currently listed on Vizio’s website as special orders only, with limited quantities. Customers will be contacted by a local custom installer to arrange delivery and a white-glove setup service.

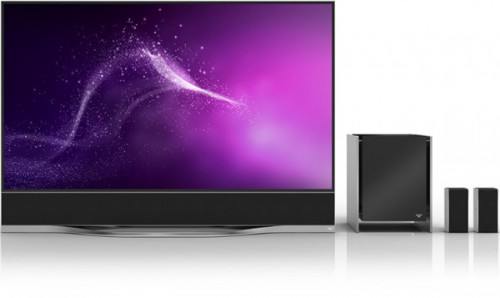

RS65-B2

RS65-B2 w/ Subwoofer and Satellite Speakers

Feature Highlights:
  • Dolby Vision HDR (12 Bit High Dynamic Range) – enhances image quality by increasing contrast and picture brightness up to 800 nits (nit refers to visible-light intensity used to specify brightness)
  • Full-Array LED backlighting with 384 active LED zones for exceptional contrast range producing vibrant peak whites and intensely deep black levels
  • UHD Spatial Scaling Engine – upscales all standard HD content to near UHD (4K) resolution
  • Clear Motion 1800 – for smooth and stable motion blur reduction of fast action content during movies, rapid video game play and sports broadcast
  • Pure Cinema Engine – adapts the Reference Series’ frame rate to show films in their native 24 frames per second
  • High Velocity Mode – for low latency (lag time) during video game play
  • Pure Pixel Processing Engine – processes more than 1 Billion pixels per second for exceptional detail precision – clearing judder, ghosting and pixel gain
  • Vizio Internet Apps PLUS – delivers the most popular apps featuring 4K UHD, HDR-mastered content coming soon to VUDU, as well as 4K UHD content on Netflix, Amazon Instant Video and UltraFlix
  • V6 Six-Core Processing – featuring a Quad-core GPU and Dual-core CPU – this high speed processing allows for better upscaling of video content, quick access and toggling between apps, and faster TV power on
  • Dual Band Wi-Fi Connectivity – experience faster internet connections with Dual-Band 802.11ac Wi-Fi (up to 3x faster than 802.11n) – this high speed capability allows for an instant connection to your favorite apps and internet services
  • The RS65-B2’s built-in 5.1 audio system features a 3-channel built-in Vizio soundbar, two satellite speakers and a 10″ wireless Bluetooth enabled subwoofer, for an enveloping full range surround sound presentation

Technical  Specs

Provided by Vizio

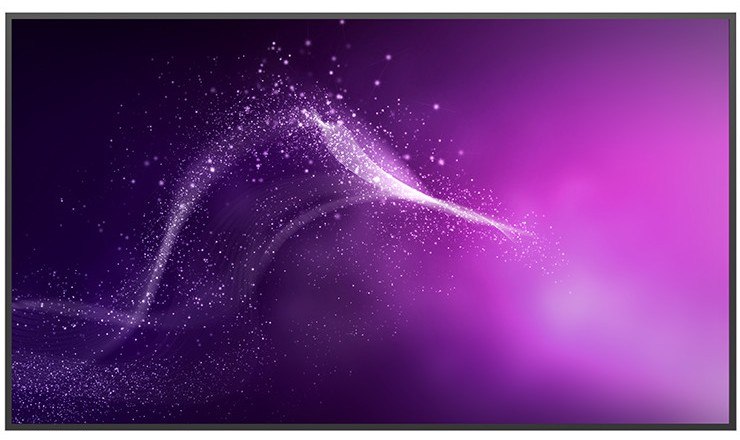

RS120-B3

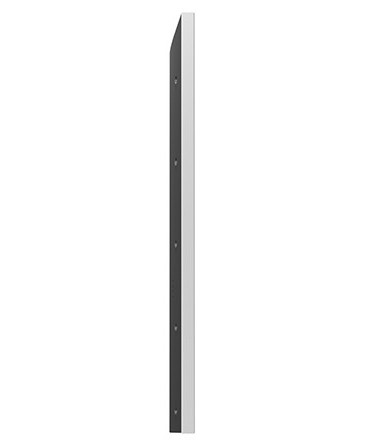

RS120-B3 side view

RS120-B3 Side View

Video

  • Screen Size – 120″
  • High Dynamic Range – Yes, Dolby Vision
  • Ultra Color Spectrum – Yes
  • Screen Size (Diag.) – 120″
  • Backlight Type – Full-Array LED
  • Local Dimming – Yes, Active LED Zones x384
  • Resolution – 3840×2160 (Ultra HD)
  • Effective Refresh Rate – 240Hz
  • Clear Action – 1800
  • Aspect Ratio – 16:9
  • Dynamic Contrast Ratio – 100 Million to 1
  • Viewable Angle (H/V) – 178°/178°
  • Number of Colors -1.07 Billion
  • OSD Language – English, Spanish, French

Smart TV

  • VIA (VIZIO Internet Apps) – Yes, VIZIO Internet Apps Plus
  • Built-in Wi-Fi – Yes, 802.11ac Dual Band
  • Second Screen Interactivity – Yes

Inputs

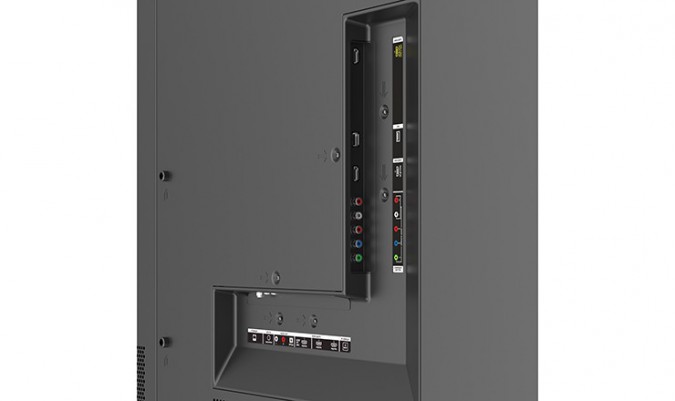

RS120-B3 rear ports

RS120-B3 Rear Ports

  • HDMI Ports – 5 (2 side / 3 down)
  • Component – 1 (side)
  • Composite – 1 (side)
  • Tuner – 1 (down)
  • Ethernet – 1 (down)
  • USB Ports – 1 (side)

Outputs

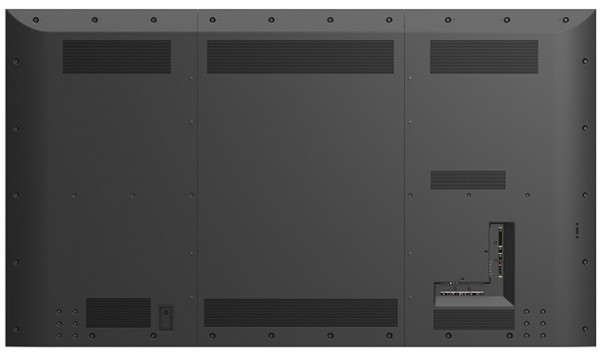

RS120-B3 Rear Panel

RS120-B3 Rear Panel

  • Analog Audio Out – 1 (down)
  • Digital Audio Out – (SPDIF)1 (down)

Additional Features

  • Remote Control – XRT500 – Two-sided remote with backlit QWERTY keyboard
  • USB Music – Yes
  • USB Photo – Yes
  • USB Video – Yes

Energy Savings

  • Standby Power Consumption – <1W

Wall Mount Specifications

  • Screw Size-M6

Size and Weight

  • Product with Stand Dimensions: 106.92” x 61.15” x 3.7”
  • Product with Stand Weight: 385.8
  • Product Packaging Dimensions: 114.57” x 73.82” x 36.42”

VIZIO Warranty

  • Warranty – One Year Parts & Labor. Free Lifetime Technical Support.



RS65-B2

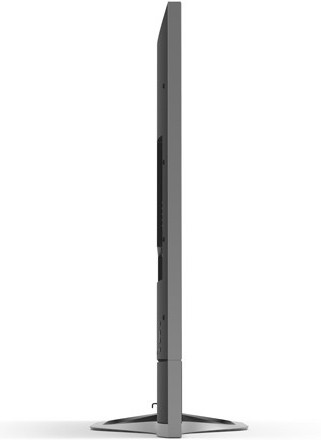

rs65-b2 side view

RS65-B2 Side View

Video

  • Screen Size – 65″
  • High Dynamic Range – Yes, Dolby Vision
  • Ultra Color Spectrum – Yes
  • Screen Size (Diag.) – 64.52″
  • Backlight Type – Full-Array LED
  • Local Dimming -Yes, Active LED Zones x384
  • Brightness (measured in nits) – 800 nits
  • Resolution – 3840×2160 (Ultra HD)
  • Effective Refresh Rate – 240Hz
  • Clear Action – 1800
  • Aspect Ratio -16:9
  • Dynamic Contrast Ratio – 100 Million to 1
  • Viewable Angle (H/V) – 178°/178°
  • Number of Colors – 1.07 Billion
  • OSD Language – English, Spanish, French

Smart TV

  • VIA (VIZIO Internet Apps) – Yes, VIZIO Internet Apps Plus
  • Built-in Wi-Fi – Yes, 802.11ac Dual Band
  • Second Screen Interactivity – Yes

Inputs

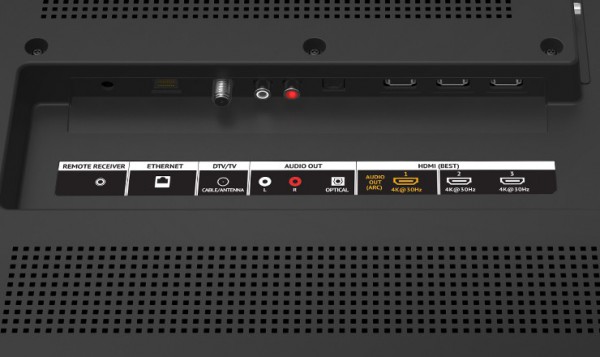

RS65-B2 ports

RS65-B2 Bottom Ports

  • HDMI Ports – 5 (2 side / 3 down)
  • Component – 1 (side)
  • Composite – 1 (side)
  • Tuner – 1 (down)
  • Ethernet – 1 (down)
  • USB Ports – 1 (side)

Outputs

  • Analog Audio Out – 1 (down)
  • Digital Audio Out (SPDIF) – 1 (down)

Additional FeaturesVizio QWERTY Remote

  • Remote Control – XRT500 -Two-sided remote with backlit QWERTY keyboard
  • USB Music – Yes
  • USB Photo – Yes
  • USB Video – Yes

Energy Savings

  • Standby Power Consumption – <1W

Wall Mount Specifications

  • Screw Size – M6

Size and Weight

  • Product with Stand Dimensions: 57.40”W x 39.70”H x 12.87”D
  • Product with Stand Weight: 114.20 lbs.
  • Product without Stand Dimensions: 57.40”W x 32.81”H x 2.28”D
  • Product without Stand Weight: 84.88 lbs.
  • Product Packaging Dimensions: 82.56”W x 38.19”H x 18.48”D
  • Product Packaging Weight: 60.20 lbs.

VIZIO Warranty

  • Warranty – One Year Parts & Labor. Free Lifetime Technical Support.

All image credit: Vizio
